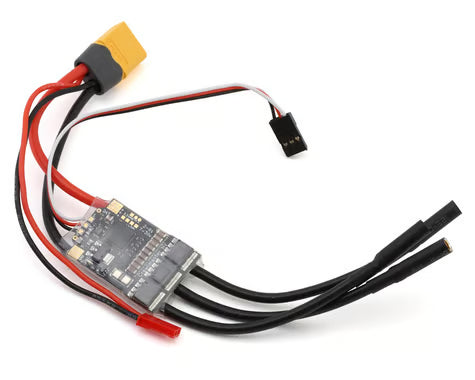

Holmes Hobbies CrawlMaster HV 1/10 Rock Crawler Sensorless Brushless ESC (2-6S) (HHB210100025)

ESC Overview:

The Holmes Hobbies CrawlMaster HV Brushless ESC is specifically designed for lightweight Competition RC rock crawlers, one-tenth scale and smaller single-speed trail and rock crawlers, such as the TRX4 Sport, SCX10, and Element Enduro to offer exceptional buttery smooth performance for trail, scale, and rock crawling applications. This advanced electronic speed control is capable of handling voltages up to 30v while ensuring stability with higher KV motors. With its compact design and powerful features, it provides a smooth and quiet driving experience essential for tackling challenging terrains with confidence and ease!

The CrawlMaster HV ESC features a lightweight and compact design, making it easy to install in tight spaces. Its Exclusive Sinewave Startup ensures smooth motor operation, while the silent operation with an inaudible switching frequency provides a quiet, precise driving experience. Additionally, the Normal PWM throttle delivers predictable power output, and the Intelligent RPM lock at low speeds offers unmatched control, allowing you to navigate tough obstacles with ease.

Note:

• NOT recommended for two speed vehicles, rock racers, tow rigs, and other high load installations.
• NOT recommended for vehicles heavier than 8lb.
• NOT WATERPROOF! Holmes Hobbies recommends coating with silicon conformal if you plan to running in wet, moist, or dusty conditions.

Features:

• 32-bit processing power for advanced control algorithms
• Exclusive Sinewave Startup for smooth motor operation
• Silent operation with inaudible switching frequency
• 2 to 6S LiPo compatible
• Intelligent RPM lock at low speed for precise control
• Normal PWM throttle for predictable power output
• Overcurrent, temperature, and throttle loss protection
• Automatic cell detection and low voltage protection
• 5 volt 2.5 amp internal BEC for powering servos

Specifications:

• Type: Sensorless Brushless
• Applicstion: 1/10 Single Speed Rock Crawlers Up to 8lbs
• Input Voltage Voltage: 2 to 6S LiPo (30V max)
• Continuous Current: 40A
• Peak Current: 120A
• Dimensions: (38x27x4.6mm)
• Weight: 32g
• BEC: 5V 2.5A
• Battery Connector: XT60

Includes:

• (1) Complete ESC
• (1) 100mm motor leads
• (1) 100mm XT60 battery lead with integrated JST connection
• (1) 125mm Rx lead
