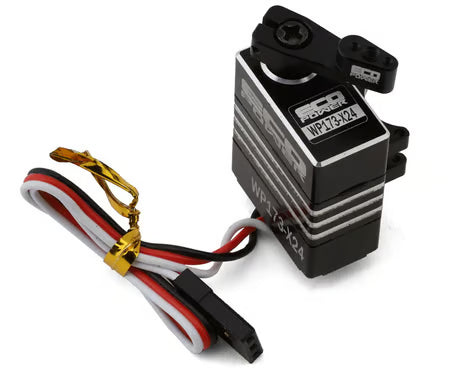

Eco Power Scx24 Servo (ECP-173-X24)

The Revolution of Powerful Mini Servos!

EcoPower is proud to introduce the WP173-X24 Aluminum Digital Micro High-Voltage Servo! The most innovative and powerful micro servo tailored specially for the Axial™ SCX24 platforms as the ultimate performance upgrade!

About the WP173-X24 Servo

Design

Unlike all other traditional servos on the market, the EcoPower WP173-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP173 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!

Extreme Torque & Speed

Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs with heavier tuning weights and wheels! This EcoPower WP173-X24 micro servo is capable of outputting 173oz.in (12.5Kg-cm) of torque and 0.07 sec/60 of speed at 8.4 Volts to turn even the heaviest micro rig wheels smoothly, precisely and with ease!

Robust Construction & Drivetrain

When it comes to durability and reliability, the EcoPower WP173-X24 micro servo is fitted with all metal heavy-duty gears, an all-aluminum finned case to maximize heat dissipation and an aluminum 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP173-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!

Features:

• The ultimate upgrade for Axial™ SCX24
• Extreme torque and speed levels
• Innovative direct axle mount
• Eliminates the need for separate servo mount
• All CNC-machined aluminum case
• 1-year warranty!
• High voltage capable of operating on up to 8.4 Volts!
• HD all metal gears and output shaft spline
• Waterproof design
• Powerful coreless motor
• Includes a CNC-machined aluminum horn with multiple mounting holes

• Includes:

  • (1) WP173-X24 Aluminum Digital Micro Servo
  • (1) Aluminum Servo Horn
  • (2) Composite Servo Horns

  Specifications:

  Application	1/24 & 1/18
  Input Voltage	6V-8.4V
  Speed
  @6.0V:	0.09 sec/60
  @8.4V:	0.07 sec/60
  Torque:
  @6.0V:	123oz.in (8.9Kg-cm)
  @8.4V:	173oz.in (12.5Kg-cm)
  Motor	Digital Coreless
  Output Shaft	Mini 25T
  Gear Material	Metal
  Dimensions (LxWxH)	0.9x0.47x1.25in (23x12x31.75mm)
  Weight	16g

  *Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!

  **Tech Note: Do not exceed 8.4 Volt as it might damage the servo

  ***Tech Note: Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points
