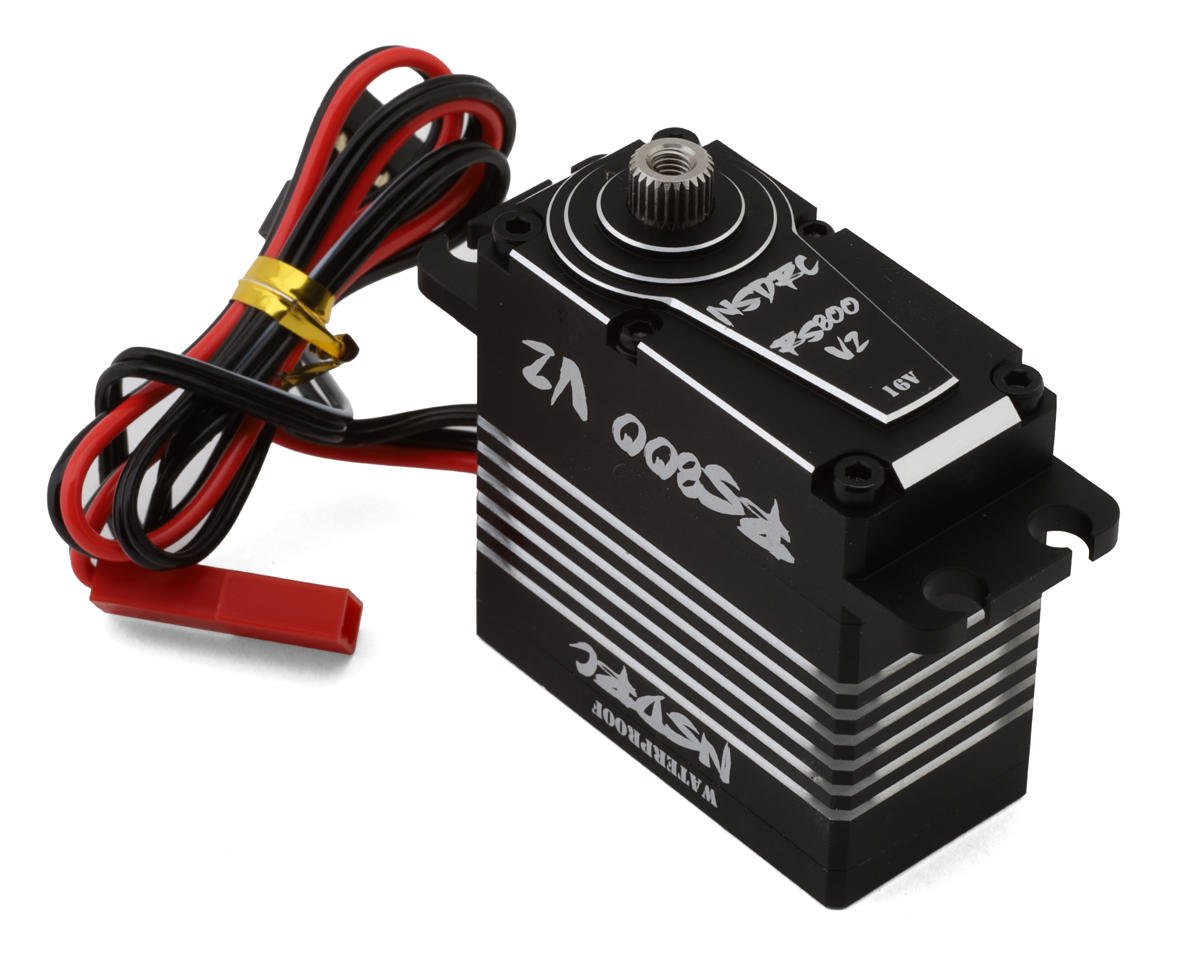

No Superior Designs RC RS800 V2 Ultra High Torque Brushless Servo (High Voltage) (NSD-RS8V20)

No Superior Designs RS800 V2 Ultra High Torque Brushless Servo. Designed to fulfill the power and speed demanded for competition level 1/10 RC crawlers and to be one of the top performing servos on the market! This powerful RS800 V2 features hardened stainless steel gears, black anodized all CNC-machined aluminum case, high quality powerful brushless motor, high voltage (HV) capability and a water resistant design. In addition, this RS800 V2 can put out up to 1100oz-in/80kg-cm of pure torque and 0.10 sec/60° of speed on 16.8V! With all these features and more at a budget friendly cost, this servo offers an incredibly unbeatable value!

NOTE:

• The power connection plug, or power switch on your ESC, must be disconnected or turned off when not in use to prevent damage to the servo and/or battery.
• Not recommended to power using balance plug

Features:

• Hardened stainless steel gears
• Black anodized all CNC-machined aluminum case
• Water resistant (Not Submergible)
• Designed and built with the power and speed needed for competition level 1/10 RC crawlers
• High quality powerful brushless motor
• High voltage (HV) capable
• Built with the top quality materials

Specifications:

• Type: Standard
• Motor Type: Brushless
• Operating Voltage: 8.4V - 16.8V
• Gears: Hardened Stainless Steel
• Spline: 25T
• Dimension (LxWxH): 40x39x20mm
• Weight: 85g
• Case: CNC-Machined Aluminum
• Torque:
• 8.4V: 600oz/ 43kg
• 12.6V: 900oz/ 65kg
• 16.8V: 1100oz/ 80kg
• Speed:
• 8.4V: 0.18 sec/60°
• 12.6V: 0.14 sec/60°
• 16.8V: 0.10 sec/60°

Includes:

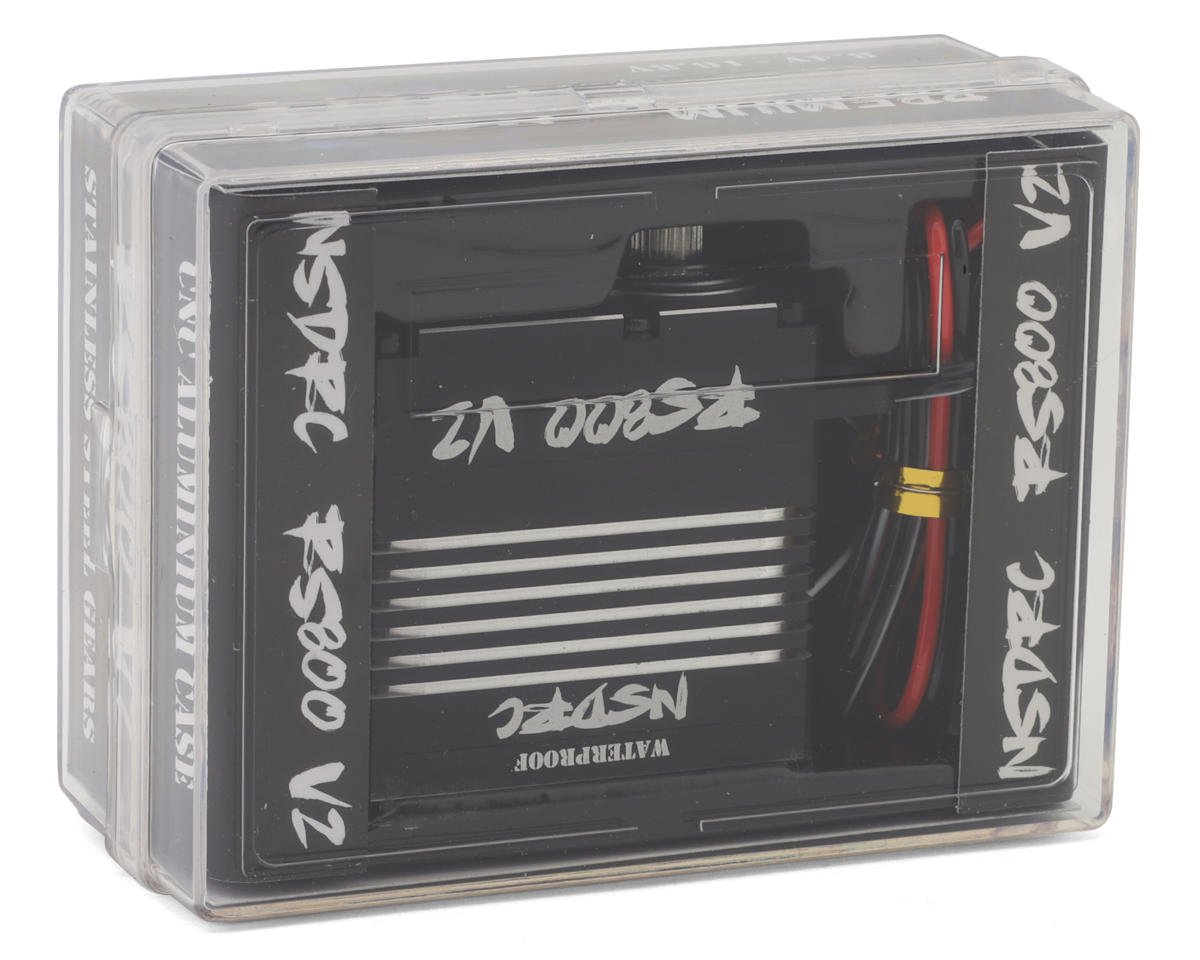

• (1) RS800 V2 Ultra High Torque Brushless Servo
• Multiple composite horns
• Mounting screws, bushing and rubber grommets
